OM-2P
FORZA
8452
Availability: | |
---|---|
Quantity: | |

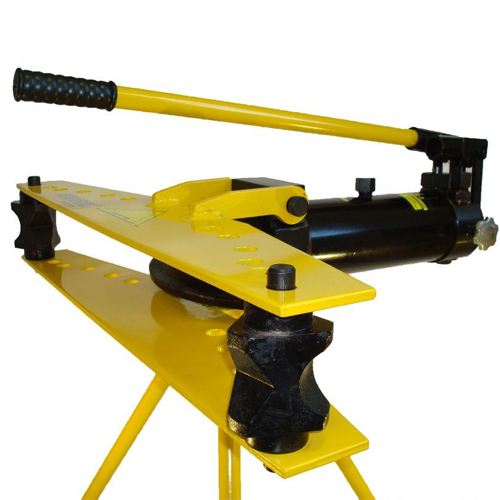

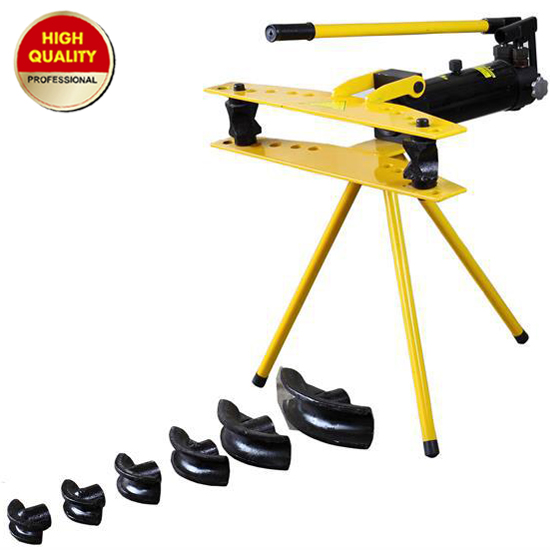

Hydraulic pipe bender with tripod
Includes several cast-iron shoes for different dia. pipe.
Designed for bending the pipes in the shop.
Model | Max pressure | Max.stroke | Crimp range | Bending Dies | Oil grade(#) | Pipe wall thickness | G.W(Kg) | Package Size(mm) |
OM-2P | 44Mpa | 250mm | φ21.3-φ60 | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" | N15 | 2.75mm-4.5mm | 55 | 780x350x260 |
Working in both horizontal and vertical positions, the cast iron dies allow you to easily create one of a kinds or duplicates quickly. Single piston hydraulic unit for smooth operation. Fitted with externally mounted return springs. Suitable for bending gas and air pipe, Supplied with eight steel dies to help prevent pipe distortion.
Hydraulic pipe bender with tripod
Includes several cast-iron shoes for different dia. pipe.
Designed for bending the pipes in the shop.
Model | Max pressure | Max.stroke | Crimp range | Bending Dies | Oil grade(#) | Pipe wall thickness | G.W(Kg) | Package Size(mm) |
OM-2P | 44Mpa | 250mm | φ21.3-φ60 | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" | N15 | 2.75mm-4.5mm | 55 | 780x350x260 |
Working in both horizontal and vertical positions, the cast iron dies allow you to easily create one of a kinds or duplicates quickly. Single piston hydraulic unit for smooth operation. Fitted with externally mounted return springs. Suitable for bending gas and air pipe, Supplied with eight steel dies to help prevent pipe distortion.
In principle, the hydraulic jack is based on Pascal principle, that is, the pressure of the liquid is the same everywhere, so in a balanced system, the pressure exerted on the smaller piston is relatively small, and the pressure exerted on the larger piston is also relatively large, which can keep t
