Do you know floor jacks?

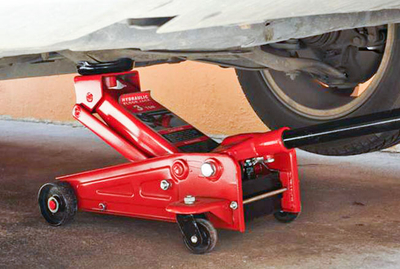

Floor jacks are common tools that users to lift vehicles or auto parts off the ground during repair or maintenance, are ideal for using cars, SUVs, truck services, farms and shops.

A floor jack is a lifting equipment which use rigid lifting parts as working device and lift heavy object in a small stroke through the top support. With the aid of a floor jack, user can attain the minimum lifting capacity to raise a load off the ground. It is a commonly used in daily operation to lift, move or push heavy objects.

Floor jacks mostly have 2 ton floor jack, 2.5 ton floor jack3 ton floor jack, 3.5 ton floor jack and low profile floor jack, kinds of floor jacks can be used for lifting compact cars, off-road cars, sport cars and trucks. If you need to lift heavier trucks, the long reach floor jack could be more suitable option, it has strong lifting power to get the work done easily.

The floor jacks producing process including cutting, punching, welding, powder spraying, testing, assembly and packing. Our hydraulic floor jack manufacturer have automatic welding equipments to make plate welding smoothly and also durable.

As one of the most professional floor jack manufacturers and suppliers in China, we are featured by quality products, competitive price and good service.

This year our hot sale types are 3 ton low profile floor jack and 3.5 ton low profile floor jack, they have dual pump design and can make lifting quickly, the ultra low profile floor jack can fit for racing car and low cars.

What are floor jacks used for?

Floor jacks are a kind of widely used in load weight of vehicles or mobile devices supporting equipment and adjust the equipment level of an important hydraulic tools,

The floor jack can play a very important role in auto repair shops and factories. Its purpose is to lift heavy objects. This not only saves manpower, but also helps us to repair or inspect objects.



Generally, auto repair shops usually use 3 ton floor jack and 2ton floor jack for easy to operating, the long floor jack has a large lifting capacity and is suitable for large and heavy vehicles.



The advantage of low pro floor jack is the low chassis, so that after the lifting is more stable, it will not cause unnecessary harm to the human body.

Kinds of floor jacks are mainly used in transportation, factories, mines and other departments as vehicle repair and other lifting and supporting tasks. Its structure is stable, firm, flexible and reliable, and can be operated efficiently and safely by user.

Types Of  Floor Jacks
The Importance Of Choosing Right Floor Jacks

Hydraulic 2 Ton Floor Jack

   Model

OM601 or OM601D

Capacity

2 ton

Min. Height

125mm

Max. Height

300mm

Lifting Height

175mm

N.W.:

6.5kg

G.W.:

7.0kg

Qty/Ctn

1pc

OM601 Packing

color box or customized color box.

Color box package size

435mmx205mmx135mm

OM601D Packing

plastic box

Plastic box package size

435mmx200mmx150mm

Min order

500pcs

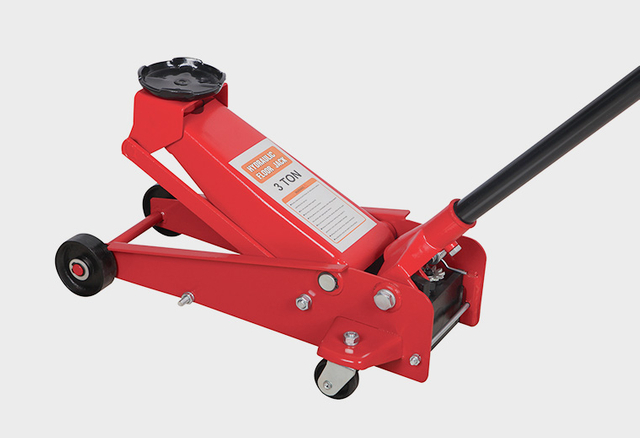

Lightweight 3 Ton Hydraulic Floor Jack

Model

OM500

Capacity

3 ton

Min. Height

135mm

Max. Height

500mm

Lifting Height

365mm

N.W.:

28kg

   G.W.:

30kg

Qty/Ctn

1pc

Package size

680mmX380mmX200mm

Packing way

neutral color box or customized color box.

Min order

100pcs

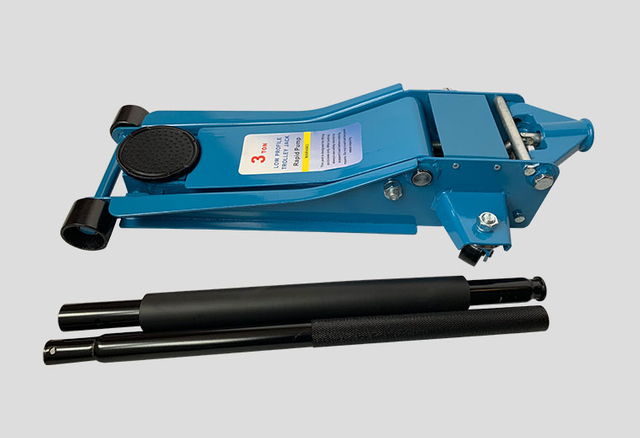

3 Ton Ultra Low Profile Hydraulic Floor Jack

Model

OM590

Capacity

3 ton

Min.H.(mm)

75mm

Max.H.(mm)

505mm

N.W.

32.5kg

G.W.

34kg

Qty/Ctn

1pc

Package size

770mmx400mmx180mm

Packing way

color box with foam pad

Type :

Dual pump for quick lift

Structure:

Ultra low profile

Min Order

80 pcs

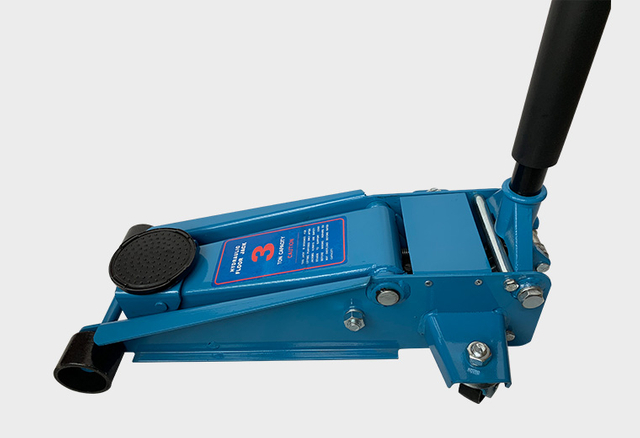

3 Ton Hydraulic Floor Jack with Rapid Pump

Model

OM570

Capacity

3 ton

Min.H.

130mm

Max.H.

460mm

N.W.(kg)

32kg

G.W.(kg)

34kg

Qty/Ctn

1pc

Package size (mm)

730mmx400mmx180mm

Packing way

Color box with foam pad

Type :

Dual pump for quick lift

Min Order

100 pcs

Rapid Lift Low Profile 3.5 Ton Hydraulic Floor Jack

Model

OM592

Capacity

3.5 ton

Min.H.(mm)

90mm

Max.H.(mm)

550mm

N.W.

41kg

G.W.

43kg

Qty/Ctn

1pc

Package size

820mmx400mmx180mm

Packing way

color box with foam pad

Type :

Dual pump for quick lift

Min order

60 pcs

4 Ton Rapid Lift Low Profile Hydraulic Floor Jack

Model

OM592B

Capacity

4 ton

Min.H.(mm)

90mm

Max.H.(mm)

505mm

N.W.

43kg

G.W.

45kg

Qty/Ctn

1pc

Package size

820mmx400mmx180mm

Packing way

color box with foam pad

Type :

Dual pump for quick lift

Min order

70 pcs

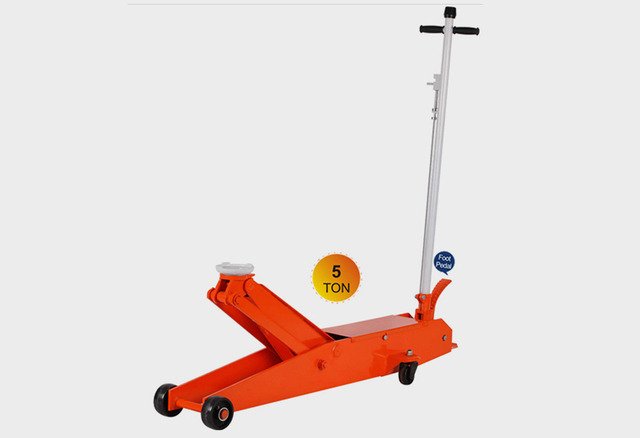

5 Ton Hydraulic Long Reach Floor Jack

Model

OM950

Capacity

5 ton

Min. Height

160mm

Max. Height

600mm

Lifting Height

440mm

N.W.:

86kg

  G.W.:

100kg

Long floor jack size

1530mmx380mmx210mm

Qty/Ctn

1pc

Package size

1540mmX420mmX280mm

Packing way

plywood case

Min order

10 pcs

Best Floor Jacks Use Guide&Maintenance

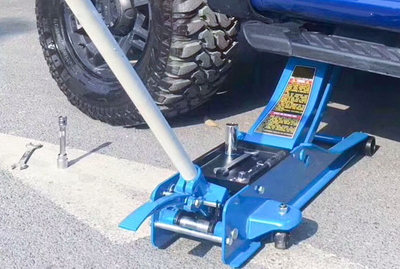

Floor Jack Instructions

  Loosen the nut of the replacement wheel, but do not unscrew it.

  Put the handle into the  jack and shake the handle of hydraulic floor jack clockwise to the appropriate height.

  Place the jack under the lifting position specified by the automobile factory, turn the handle clockwise to make the jack saddle contact with the jacking part, and check whether the contact is safe and reliable.

  Then, rock the handle to raise the vehicle to the appropriate height, replace the tire, and tighten the nut.

  Finally, take out the jack and turn the oil return valve counterclockwise, the jack will gradually drop.



The inside of the side skirt of each car has the support point of the jack parallel to the side skirt, which can be touched by hand. So when using a floor jack for lifting, it must be supported on the special support point, which is made of steel plate with high strength.

The floor jack must be placed on the hard flat ground. If the car happens to be damaged in the soft ground or gravel, hard wood points can be used to ensure the supporting angle of the jack under the jack.

Through above instruction you can clearly understand how to use floor jack to correctly and safely lift heavy objects.

Floor Jack Maintenance

The floor jack uses hydraulic oil as the medium, so the oil and the maintenance of the machine must be done first to avoid blockage or oil leakage, which will affect the effect of use.

Strictly abide by the regulations in the main parameters when using, and avoid super high and overload. Otherwise, when the lifting height or lifting tonnage exceeds the regulations, oil leakage will occur at the top of the cylinder.

Avoid violent vibration of the floor jack during use, and it is also not suitable for use in workplaces with acid, alkali and corrosive gas.

When after using floor jack,  you need to relieve pressure and clean the surface.

User should check and maintain it regularly according to the usage. Use floor jack correctly and safely and add hydraulic oil to it according to the regulation, can prolong the service life of floor jack, also can improve the working efficiency when working.
