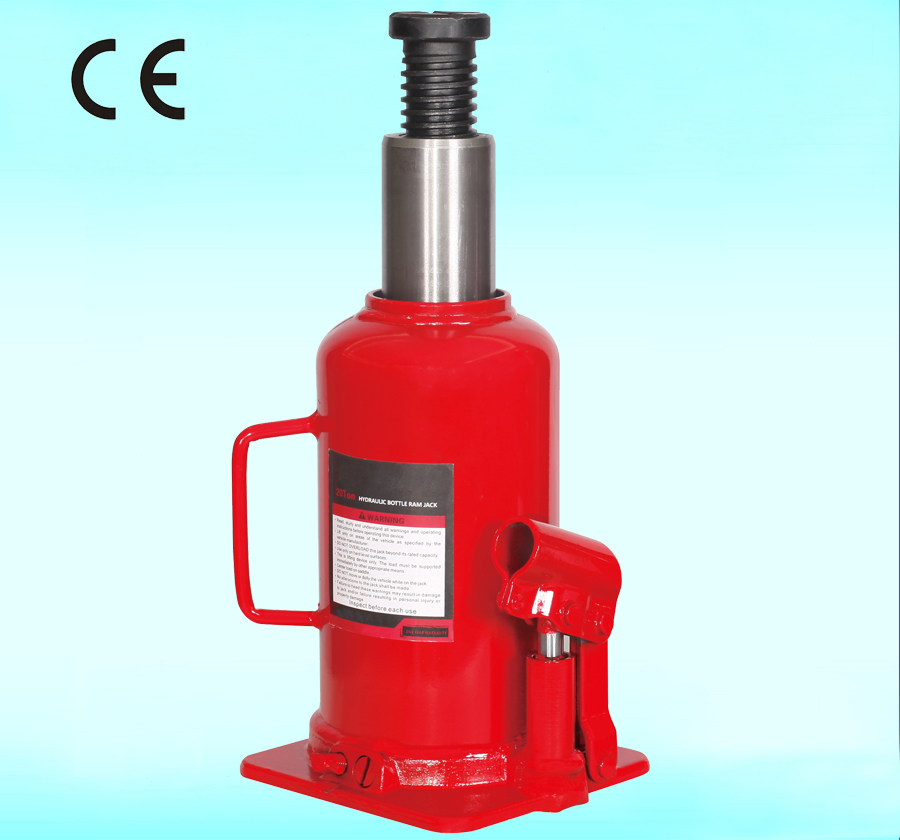

Welded Hydraulic Bottle Jack

  • Model: 0205-5005
  • Unit: pcs
  • Min order: 100
Quantity:
Welded Hydraulic Bottle Jack Features:
Capacity from 2Ton-50Ton

-for heavy duty truck and automotive application.
-Robotic welding process assures strength and eliminates leaks.
-Chrome plated pump piston and ram for additional rust resistance and durability.
-Extension screw provides height adjustment for maximun height.
-Two or there piece painted handle.
-Oil by-pass safety system prevents damage from the ram being over extanded.
-Meets CE standards.
Model Capacity (Ton) Min.H.(mm) Adjust.H.(mm) Max.H.(mm) N.W(kg) G.W(kg) Q'ty/Ctn Package Size(mm)
OM0205 2T 181 48 345 2.5 2.7 1 100*95*190
OM0305 3T 193 60 373 3.2 3.4 1 110*115*200
OM0505 5T 210 70 415 4.2 4.5 1 125*125*220
OM0805 8T 230 80 460 5.3 5.7 1 130*130*245
OM1005 10T 230 80 460 6.2 6.5 1 138*130*240
OM1205 12T 230 80 465 7 7.3 1 145*137*240
OM1205B 12T 190 60 365 6.2 6.5 1 145*137*200
OM1505 15T 230 80 460 8 8.3 1 150*145*240
OM2005 20T 190 60 350 7.7 8 1 155*165*200
OM2005B 20T  240 60 455 10.3 10.7 1 155*165*250
OM3005 30T  275 / 440 13.3 14 1 168*185*285
OM5005 50T  275 / 425 25.0 26 1 195*230*280
