Welded 50 ton shop press

Welding shop press with gauge
Pneumatic/Hydraulic
Used for parts straightening,bending and pressing
Open side heavy duty construction allow work on the longest work pieces.
Remove and install bearings, gears, U-joints, bushings, ball joints, pulleys
Raise and lower table for the best working distance possible
Plastic spraying
Paint Color: Optional
Packing: strong plywood box
Sales Model: Wholesale

  • OS-5002H
  • FORZA
  • 8425
  • Unit: set
  • Min order: 5sets
  • Type : Welded
  • Capacity: 50ton
Package Size:
Packing way :
Quantity:

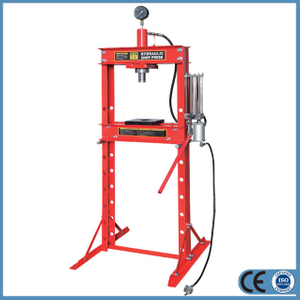

Welded shop press with gauge
Capacity: 50ton
Pneumatic/Hydraulic
Plastic Spraying
Used for parts straightning,bending and pressing;
Pressure gauge show working presure.
Open side heavy duty construction allow work on the longest work pieces.
Remove and install bearings, gears, U-joints, bushings, ball joints, pulleys, etc
Raise and lower table for the best working distance possible.
Spring return ram speed up your work.
     Model    Capacity Stroke Bed Width     Working Range Air Pressure   N.W    G.W          Package Size(mm)
  OS-5002H     50Ton 200mm    700mm        75-1125mm 0.75-0.85Mpa   248kg   268kg           970x310x1920


shop press exporting main market
FAQ detail:
Industry nature:
We are professional manufacturer and exporter (supplier) in China.
Quality Guarantee:
We can give 1 year guarantee, include supplying vulnerable parts service and technical support
Lead Time
28days-30days since date of order be confirmed
Loading port:
We export from Ningbo port/Shanghai port
Package:
Packing: strong plywood box
or according to customized demands.
Customer Service:
24hours by email: tom@hzomega.com
(SKYPE ID): tom.he818
(WhatsApp ID): +86 13958159228

Hotline/Urgent in inquiry:
(Tel)+86 571 89935095 &  (Fax) +86 571 89935094
