OM500, OM510, OM520 and OM530
FORZA
8425
Availability: | |
---|---|
Quantity: | |
Model | Capacity | Min. Height | Max. Height | N.W. | G.W. | Qty/Ctn | Package Size |
OM500 | 3 ton | 135mm | 500mm | 28kg | 30kg | 1pc | 680mmx380mmx200mm |
OM510 | 3 ton | 135mm | 500mm | 30kg | 32kg | 1pc | 680mmx380mmx200mm |
OM530 | 3 ton | 135mm | 500mm | 33.5kg | 35.5kg | 1pc | 680mmx380mmx200mm |
Packing way | neutral color box or customized color box. | ||||||
Min order | 50 pcs | ||||||
Place of Original | Zhejiang, China | ||||||
Loading Port | Ningbo port or Shanghai port | ||||||
Delivery time | 25 days-30 days |

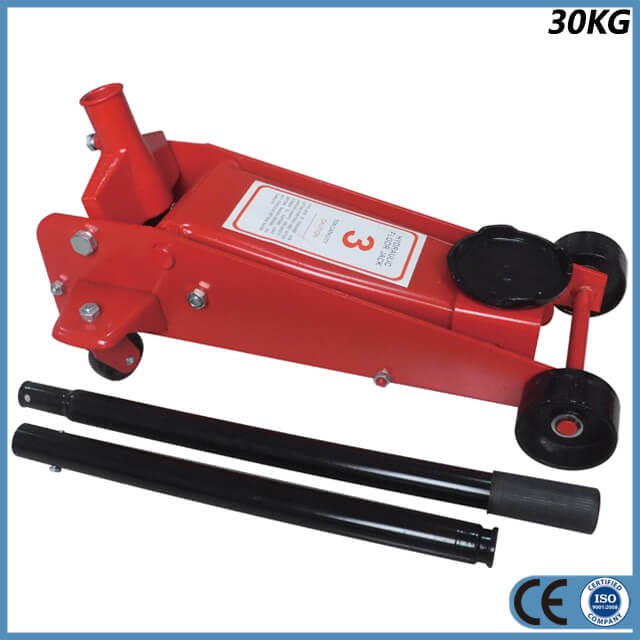

Professional 3 ton hydraulic floor jack has a single hydraulic pump piston that effort less raises the lift arm. Pump piston dust shields and wiper seals protect the hydraulic system from contaminants. The floor jack features an overload valve bypass system to prevent jack damage and user injury.
Compact design allows use in confined spaces. Easily fits under low vehicles. This product is tested for reliability and safety. The hydraulic technology makes lifting simple while a wider frame and internal bypass valve ensure safety.
Use method:
1. Loosen the nut of the replacement wheel, but do not unscrew it.
2. Put the handle into the jack and shake the handle of hydraulic floor jack clockwise to the appropriate height.
3. Place the jack under the lifting position specified by the automobile factory, turn the handle clockwise to make the jack saddle contact with the jacking part, and check whether the contact is safe and reliable.
4. Then, rock the handle to raise the vehicle to the appropriate height, replace the tire, and tighten the nut.
5. Finally, take out the jack and turn the oil return valve counterclockwise, the jack will gradually drop.
Features:
●All welded steel frame construction with cast iron support arms with rust resistant finish for long tool life.
●Twist gear release mechanism, built-in safety valve provides overload protection.
●Swivel saddle and rear casters provide smooth maneuvering and positioning.
●Carry handle for easy transportation and storage.
●Safely overload system to prevent use beyond.
●Wide stance frame for better stability.
●Ideal for shop and service station use.
FAQ:
Which is merchandise loading port for exporting?
From Ningbo or Shanghai port, generally exporting from Ningbo loading port.
What's the universal lead time for order delivery?
In general, it will take 25 days to 35 days after receiving advance deposit payment. The specific delivery time depends on the product and the quantity of your order.
Do you deal with urgent orders?
Sure. Please connect with us ASAP for request details.
What basic information you should provide when inquiry?
1. Model
2. Quantity
How do you control the quality products?
We have inspect team to control the quality from material to finished products.
Can you make custom-made design for product or package?
Of course, your customized design (OEM) is available. You can send us color box artworks or label artworks design that you need, but min order quantity need 500 pcs.
Model | Capacity | Min. Height | Max. Height | N.W. | G.W. | Qty/Ctn | Package Size |
OM500 | 3 ton | 135mm | 500mm | 28kg | 30kg | 1pc | 680mmx380mmx200mm |
OM510 | 3 ton | 135mm | 500mm | 30kg | 32kg | 1pc | 680mmx380mmx200mm |
OM530 | 3 ton | 135mm | 500mm | 33.5kg | 35.5kg | 1pc | 680mmx380mmx200mm |
Packing way | neutral color box or customized color box. | ||||||
Min order | 50 pcs | ||||||
Place of Original | Zhejiang, China | ||||||
Loading Port | Ningbo port or Shanghai port | ||||||
Delivery time | 25 days-30 days |
Professional 3 ton hydraulic floor jack has a single hydraulic pump piston that effort less raises the lift arm. Pump piston dust shields and wiper seals protect the hydraulic system from contaminants. The floor jack features an overload valve bypass system to prevent jack damage and user injury.
Compact design allows use in confined spaces. Easily fits under low vehicles. This product is tested for reliability and safety. The hydraulic technology makes lifting simple while a wider frame and internal bypass valve ensure safety.
Use method:
1. Loosen the nut of the replacement wheel, but do not unscrew it.
2. Put the handle into the jack and shake the handle of hydraulic floor jack clockwise to the appropriate height.
3. Place the jack under the lifting position specified by the automobile factory, turn the handle clockwise to make the jack saddle contact with the jacking part, and check whether the contact is safe and reliable.
4. Then, rock the handle to raise the vehicle to the appropriate height, replace the tire, and tighten the nut.
5. Finally, take out the jack and turn the oil return valve counterclockwise, the jack will gradually drop.
Features:
●All welded steel frame construction with cast iron support arms with rust resistant finish for long tool life.
●Twist gear release mechanism, built-in safety valve provides overload protection.
●Swivel saddle and rear casters provide smooth maneuvering and positioning.
●Carry handle for easy transportation and storage.
●Safely overload system to prevent use beyond.
●Wide stance frame for better stability.
●Ideal for shop and service station use.
FAQ:
Which is merchandise loading port for exporting?
From Ningbo or Shanghai port, generally exporting from Ningbo loading port.
What's the universal lead time for order delivery?
In general, it will take 25 days to 35 days after receiving advance deposit payment. The specific delivery time depends on the product and the quantity of your order.
Do you deal with urgent orders?
Sure. Please connect with us ASAP for request details.
What basic information you should provide when inquiry?
1. Model
2. Quantity
How do you control the quality products?
We have inspect team to control the quality from material to finished products.
Can you make custom-made design for product or package?
Of course, your customized design (OEM) is available. You can send us color box artworks or label artworks design that you need, but min order quantity need 500 pcs.
In principle, the hydraulic jack is based on Pascal principle, that is, the pressure of the liquid is the same everywhere, so in a balanced system, the pressure exerted on the smaller piston is relatively small, and the pressure exerted on the larger piston is also relatively large, which can keep t
