Quantity: | |
---|---|
Model | OM-3L | OM-5L | OM-10L | OM-3W | OM-5W | OM-10W | |
Rated capacity/T | 3 | 5 | 10 | 3 | 5 | 10 | |
Test load/KN | 44.1 | 73.5 | 147 | 36.8 | 61.3 | 122.5 | |
Hand shake to lift full load/N | 350 | 400 | 580 | 280 | 280 | 530 | |

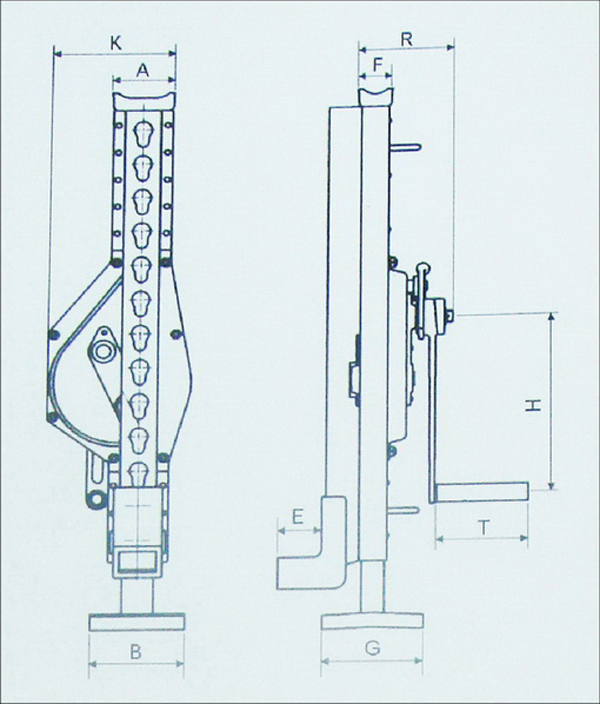

Dimensions/MM | A | 83 | 108 | 124 |
|
|
|
B | 130 | 140 | 140 |
|
|
| |
E | 60 | 71 | 86 |
|
|
| |
F | 45 | 68 | 76 |
|
|
| |
G | 138 | 170 | 170 |
|
|
| |
H | 249 | 275 | 300 |
|
|
| |
K | 170 | 190 | 252 |
|
|
| |
R | 140 | 155 | 185 |
|
|
| |
T | 128 | 128 | 250 |
|
|
| |
Net weight/KG | 23.4kg | 35.6kg | 61kg | 24kg | 33kg | 51kg |
Model | Safe Working Load(kg) | Height of Jack Body(mm) | Lifting Height(mm) | Height of Claw in Lowest Position(mm) | Net Weight(kg) |
OM-3L | 3000 | 660 | 350 | 65 | 23.4kg |
OM-5L | 5000 | 670 | 350 | 65 | 35.6kg |
OM-10L | 10000 | 720 | 350 | 80 | 61kg |
Adjustable Height of the lifting claw:
Model |
| Position 6 | Position 5 | Position 4 | Position 3 | Position 2 | Position 1 |
OM-3L | (mm) | 565 | 465 | 365 | 265 | 165 | 65 |
OM-5L | (mm) | 565 | 465 | 365 | 265 | 165 | 65 |
OM-10L | (mm) | 630 | 520 | 410 | 300 | 190 | 80 |
Model | OM-3L | OM-5L | OM-10L | OM-3W | OM-5W | OM-10W | |
Rated capacity/T | 3 | 5 | 10 | 3 | 5 | 10 | |
Test load/KN | 44.1 | 73.5 | 147 | 36.8 | 61.3 | 122.5 | |
Hand shake to lift full load/N | 350 | 400 | 580 | 280 | 280 | 530 | |
Dimensions/MM | A | 83 | 108 | 124 |
|
|
|
B | 130 | 140 | 140 |
|
|
| |
E | 60 | 71 | 86 |
|
|
| |
F | 45 | 68 | 76 |
|
|
| |
G | 138 | 170 | 170 |
|
|
| |
H | 249 | 275 | 300 |
|
|
| |
K | 170 | 190 | 252 |
|
|
| |
R | 140 | 155 | 185 |
|
|
| |
T | 128 | 128 | 250 |
|
|
| |
Net weight/KG | 23.4kg | 35.6kg | 61kg | 24kg | 33kg | 51kg |
Model | Safe Working Load(kg) | Height of Jack Body(mm) | Lifting Height(mm) | Height of Claw in Lowest Position(mm) | Net Weight(kg) |
OM-3L | 3000 | 660 | 350 | 65 | 23.4kg |
OM-5L | 5000 | 670 | 350 | 65 | 35.6kg |
OM-10L | 10000 | 720 | 350 | 80 | 61kg |
Adjustable Height of the lifting claw:
Model |
| Position 6 | Position 5 | Position 4 | Position 3 | Position 2 | Position 1 |
OM-3L | (mm) | 565 | 465 | 365 | 265 | 165 | 65 |
OM-5L | (mm) | 565 | 465 | 365 | 265 | 165 | 65 |
OM-10L | (mm) | 630 | 520 | 410 | 300 | 190 | 80 |
