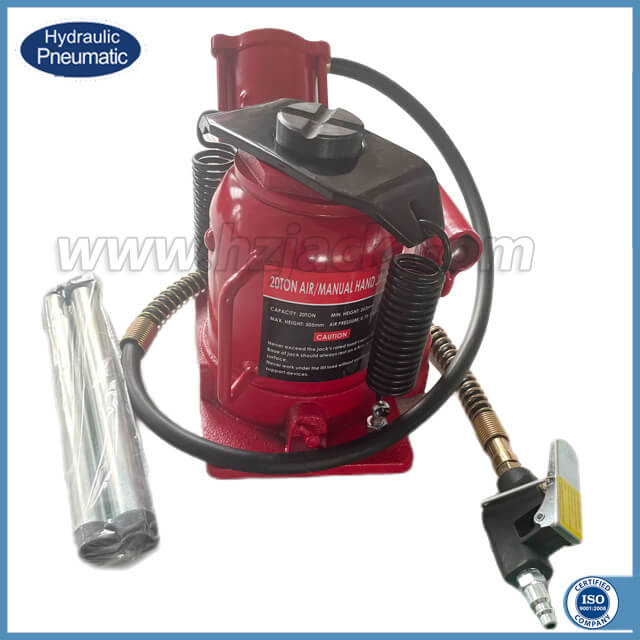

Low Profile 20 Ton Air Hydraulic Bottle Jack

Capacity: 20 ton
Type: hydraulic and pneumatic
Packing: Color box or carton box
Min order: 50 pcs
Sales models: Wholesale
  • OA-20L

  • FORZA

  • 842

Availability:
Quantity:
Model numberOA-20L

Capacity

20 ton

Minimum Height

175 mm

Maximun Height

325 mm

Lifting Height

150 mm

Net weight

13.5 kg

Gross weight

14.5 kg

Qty/Ctn

1 pc

Package size

380mmX210mmX280mm

Packing way

neutral color box or customized color box.

MOQ

50 pcs

LoadingNingbo port or Shanghai port
Delivery time25 days-30 days

Low profile 20 ton air hydraulic bottle jack is a type of hydraulic jack that uses compressed air to operate and lift heavy loads. It is designed to have a low profile, meaning that it has a short height when fully collapsed, making it ideal for use in tight spaces. The low profile design of these air hydraulic bottle jacks makes them ideal for use with vehicles with a low ground clearance, the air hydraulic system provide efficient and reliable lifting power, making it possible to lift heavy loads with ease. They are also useful for industrial applications where a low profile is required, such as in factories or workshops.

When using a 20 ton low profile air hydraulic bottle jack, it's important to ensure that you are following proper safety protocols to avoid injury or damage to the equipment. Always check the weight capacity of the jack to ensure that it is appropriate for the load you are lifting, and use the jack on a level, stable surface.
