OM0203-OM5003
FORZA
8425
Availability: | |
---|---|
Quantity: | |

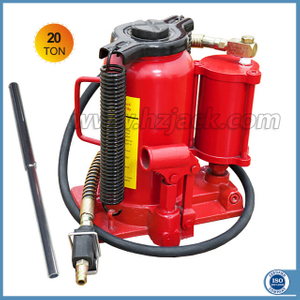

Hydraulic bottle jack with safety valve can lift from 2 ton to 50 ton capacity easily in tight spaces.
With safety valve design for avoiding overload lifting.
Great for heavy lifting and auto repair, the jack lifts up or pushes heavy weight in horizontal and vertical positions.
Ideal for auto, truck service, farm and shop use.
High quality classic type hydraulic jack with competitive prices.
Model | Capacity (Ton) | Min.H.(mm) | Lifting.H.(mm) | Adjust.H.(mm) | Max.H.(mm) | N.W(kg) | Q'ty/Ctn | G.W(kg) |
OM0203 | 2T | 148/158 | 80/90 | 50 | 278/298 | 2.2 | 10pcs | 22.0 |
OM0403 | 4T | 175 | 100 | 50 | 325 | 2.9 | 5pcs | 15 |
OM0603 | 6T | 185 | 110 | 60 | 355 | 3.6 | 5pcs | 18.5 |
OM0803 | 8T | 195 | 115 | 60 | 370 | 4 | 5pcs | 21.0 |
OM1003 | 10T | 195 | 115 | 60 | 370 | 5.4 | 5pcs | 28.0 |
OM1203 | 12T | 205 | 125 | 60 | 390 | 6.3 | 4pcs | 26 |
OM1603 | 16T | 215 | 130 | 60 | 405 | 7.2 | 2pcs | 15 |
OM2003 | 20T | 235 | 145 | 60 | 440 | 9.5 | 2pcs | 19.0 |
OM3203 | 32T | 255 | 150 | / | 405 | 10.5 | 2pcs | 21 |
OM5003 | 50T | 255 | 150 | / | 405 | 18.5 | 1pc | 19.5 |
Hydraulic bottle jack with safety valve can lift from 2 ton to 50 ton capacity easily in tight spaces.
With safety valve design for avoiding overload lifting.
Great for heavy lifting and auto repair, the jack lifts up or pushes heavy weight in horizontal and vertical positions.
Ideal for auto, truck service, farm and shop use.
High quality classic type hydraulic jack with competitive prices.
Model | Capacity (Ton) | Min.H.(mm) | Lifting.H.(mm) | Adjust.H.(mm) | Max.H.(mm) | N.W(kg) | Q'ty/Ctn | G.W(kg) |
OM0203 | 2T | 148/158 | 80/90 | 50 | 278/298 | 2.2 | 10pcs | 22.0 |
OM0403 | 4T | 175 | 100 | 50 | 325 | 2.9 | 5pcs | 15 |
OM0603 | 6T | 185 | 110 | 60 | 355 | 3.6 | 5pcs | 18.5 |
OM0803 | 8T | 195 | 115 | 60 | 370 | 4 | 5pcs | 21.0 |
OM1003 | 10T | 195 | 115 | 60 | 370 | 5.4 | 5pcs | 28.0 |
OM1203 | 12T | 205 | 125 | 60 | 390 | 6.3 | 4pcs | 26 |
OM1603 | 16T | 215 | 130 | 60 | 405 | 7.2 | 2pcs | 15 |
OM2003 | 20T | 235 | 145 | 60 | 440 | 9.5 | 2pcs | 19.0 |
OM3203 | 32T | 255 | 150 | / | 405 | 10.5 | 2pcs | 21 |
OM5003 | 50T | 255 | 150 | / | 405 | 18.5 | 1pc | 19.5 |
In principle, the hydraulic jack is based on Pascal principle, that is, the pressure of the liquid is the same everywhere, so in a balanced system, the pressure exerted on the smaller piston is relatively small, and the pressure exerted on the larger piston is also relatively large, which can keep t
