OX-1500D
FORZA
8425
Availability: | |
---|---|
Quantity: | |

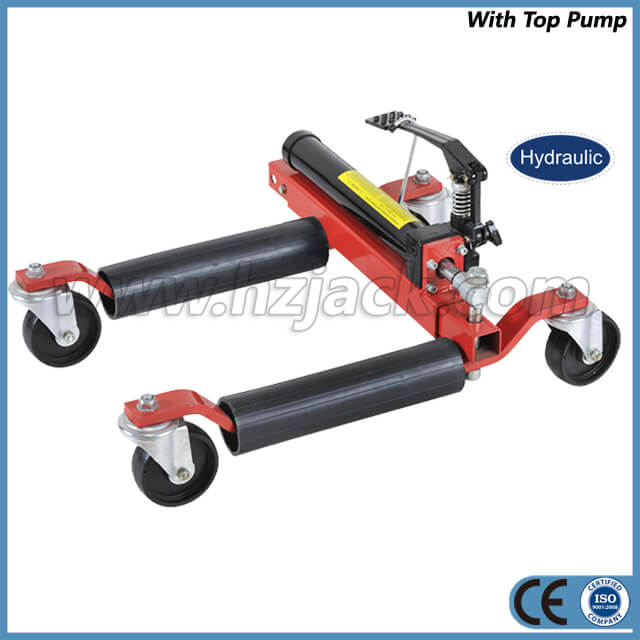

Hydraulic vehicle positioning jack 1500 Lbs is applicable to parking lot, trailer company, auto exhibition hall, garage, auto collector and museum, traffic management department, etc.
Continuous and uniform pedal to ensure that the drum can rotate smoothly to lift the wheel.
When removing the vehicle, the safety pin should be pulled out first to release the hydraulic valve.
Model number | OX-1500D |
Capacity | 1500 lbs |
Type | with top hydraulic pump |
Specification | 12" PC roller length, 4" nylon casters |
Adjusting range between rollers | 345mm-620mm |
Qty/color box | 2pcs |
N.W. | 36kg |
G.W. | 38kg |
Package size | 880mmx620mmx220mm |
Packing way | neutral color box or customized color box. |
MOQ | 50 pcs |
Qty/color box | 1pc |
N.W. | 18kg |
G.W. | 20kg |
Package size | 680mmx620mmx220mm |
MOQ | 30 pcs |
Loading | Ningbo port or Shanghai port |
Delivery time | 25days-30days |
Hydraulic vehicle positioning jack 1500 Lbs is applicable to parking lot, trailer company, auto exhibition hall, garage, auto collector and museum, traffic management department, etc.
Continuous and uniform pedal to ensure that the drum can rotate smoothly to lift the wheel.
When removing the vehicle, the safety pin should be pulled out first to release the hydraulic valve.
Model number | OX-1500D |
Capacity | 1500 lbs |
Type | with top hydraulic pump |
Specification | 12" PC roller length, 4" nylon casters |
Adjusting range between rollers | 345mm-620mm |
Qty/color box | 2pcs |
N.W. | 36kg |
G.W. | 38kg |
Package size | 880mmx620mmx220mm |
Packing way | neutral color box or customized color box. |
MOQ | 50 pcs |
Qty/color box | 1pc |
N.W. | 18kg |
G.W. | 20kg |
Package size | 680mmx620mmx220mm |
MOQ | 30 pcs |
Loading | Ningbo port or Shanghai port |
Delivery time | 25days-30days |
In principle, the hydraulic jack is based on Pascal principle, that is, the pressure of the liquid is the same everywhere, so in a balanced system, the pressure exerted on the smaller piston is relatively small, and the pressure exerted on the larger piston is also relatively large, which can keep t
