OS-2002E
FORZA
842
Availability: | |
---|---|
Quantity: | |
20 Ton Pneumatic Shop Press are made of quality steel sections welded very carefully, that extremely robust and built to last. And the hydraulic system is very stable and easy operation whether operated manually, pneumatically.
This 20 ton air shop press Bolted adjustable cross beams easily raise and lower for an ideal working distance.
Used to install or remove gears, bushing or bearing.
Great for straightening, pressing, bending or stamping.
Model | OS-2002E |
Capacity | 20 ton |
Stroke | 154mm |
Bed Width | 545mm |
Working range | 0-1040mm |
Air Pressure | 0.75-0.85MPa |
Operation mode | Air and manual |
N.W. | 93kg |
G.W. | 100kg |
Package size | 1540mmX240mmX200mm |
Qty/carton | 1pc |
Packing | plywood case |
MOQ | 20pcs |
Port | Shanghai port or Ningbo port |
Lead time | 30-40 days |

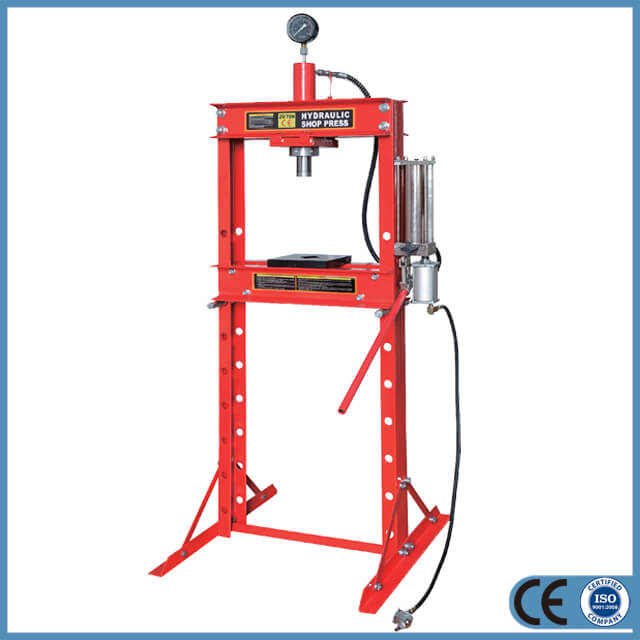

Pneumatic and hydraulic shop press with gauge
Capacity reach 20 ton
Pneumatic and hydraulic manual operation
Used for parts straightning,bending and pressing.
Pressure gauge show working presure.
Open side heavy duty construction allow work on the longest work pieces.
Remove and install bearings, gears, U-joints, bushings, ball joints, pulleys, etc
Raise and lower table for the best working distance possible.
Spring return ram speed up your work.
20 Ton Pneumatic Shop Press are made of quality steel sections welded very carefully, that extremely robust and built to last. And the hydraulic system is very stable and easy operation whether operated manually, pneumatically.
This 20 ton air shop press Bolted adjustable cross beams easily raise and lower for an ideal working distance.
Used to install or remove gears, bushing or bearing.
Great for straightening, pressing, bending or stamping.
Model | OS-2002E |
Capacity | 20 ton |
Stroke | 154mm |
Bed Width | 545mm |
Working range | 0-1040mm |
Air Pressure | 0.75-0.85MPa |
Operation mode | Air and manual |
N.W. | 93kg |
G.W. | 100kg |
Package size | 1540mmX240mmX200mm |
Qty/carton | 1pc |
Packing | plywood case |
MOQ | 20pcs |
Port | Shanghai port or Ningbo port |
Lead time | 30-40 days |
Pneumatic and hydraulic shop press with gauge
Capacity reach 20 ton
Pneumatic and hydraulic manual operation
Used for parts straightning,bending and pressing.
Pressure gauge show working presure.
Open side heavy duty construction allow work on the longest work pieces.
Remove and install bearings, gears, U-joints, bushings, ball joints, pulleys, etc
Raise and lower table for the best working distance possible.
Spring return ram speed up your work.
In principle, the hydraulic jack is based on Pascal principle, that is, the pressure of the liquid is the same everywhere, so in a balanced system, the pressure exerted on the smaller piston is relatively small, and the pressure exerted on the larger piston is also relatively large, which can keep t
