OA-20
FORZA
8425
Availability: | |
---|---|
Quantity: | |

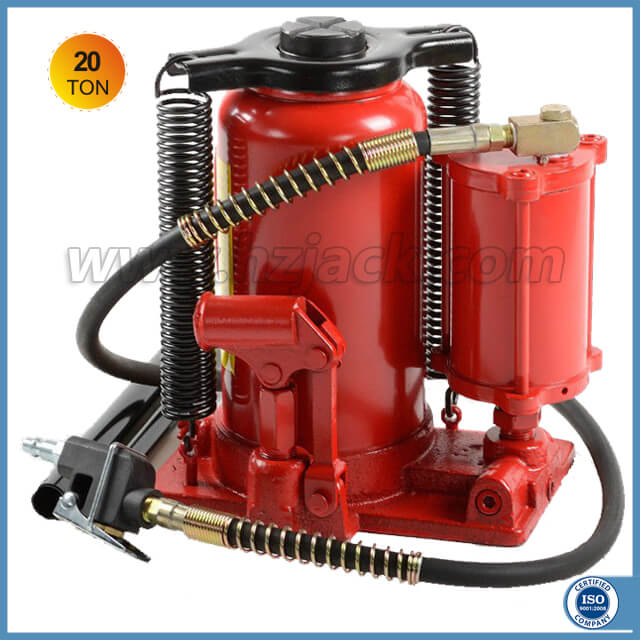

20 ton air operated hydraulic bottle jack can be used in two operations: air or hydraulic.
This hydraulic bottle jack is designed to operate with air or with manual handle, air operation reduces operator fatigue and speeds up garage work.
Manufactured with an over-load by pass system which prevents the jack from going over its capacity.
Heat treated extension screw allows low pickup height adjustment and maximum lift height.
High quality air pump for longer lift, a wide base provides stability and strength.
The hardened, machined and polished ram and plunger allows for smooth operation
Model | OA-20 |
Capacity | 20 ton |
Min.Height | 260 mm |
Max. Height | 510mm |
Adjust Height | 80mm |
Lifting.H. | 170mm |
N.W. | 15kg |
G.W. | 16kg |
Qty/Ctn | 1pc |
Package size | 280mmX220mmX280mm |
Packing | neutral color box or customized color box. |
MOQ | 50 pcs |
Main application: lift the weight such as bridges, vehicles and large-sized mechanical equipments
Main components: hydraulic cylinder, plunger, fill plug etc.
With air pump can reduce labor and improve working efficiency.
20 ton air operated hydraulic bottle jack can be used in two operations: air or hydraulic.
This hydraulic bottle jack is designed to operate with air or with manual handle, air operation reduces operator fatigue and speeds up garage work.
Manufactured with an over-load by pass system which prevents the jack from going over its capacity.
Heat treated extension screw allows low pickup height adjustment and maximum lift height.
High quality air pump for longer lift, a wide base provides stability and strength.
The hardened, machined and polished ram and plunger allows for smooth operation
Model | OA-20 |
Capacity | 20 ton |
Min.Height | 260 mm |
Max. Height | 510mm |
Adjust Height | 80mm |
Lifting.H. | 170mm |
N.W. | 15kg |
G.W. | 16kg |
Qty/Ctn | 1pc |
Package size | 280mmX220mmX280mm |
Packing | neutral color box or customized color box. |
MOQ | 50 pcs |
Main application: lift the weight such as bridges, vehicles and large-sized mechanical equipments
Main components: hydraulic cylinder, plunger, fill plug etc.
With air pump can reduce labor and improve working efficiency.
In principle, the hydraulic jack is based on Pascal principle, that is, the pressure of the liquid is the same everywhere, so in a balanced system, the pressure exerted on the smaller piston is relatively small, and the pressure exerted on the larger piston is also relatively large, which can keep t
