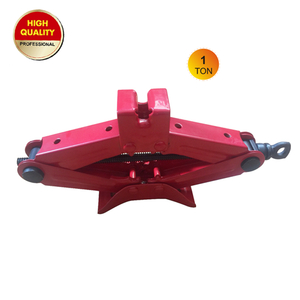

1ton small scissor jack

1Ton Scissor Jack Features:
Heavy duty steel construction for longevity. Compact and easy to store. Precision mechanics for easy operation. Perfect for replacing flat tires on any vehicle. Tooth gear designed scissor arms engage to ensure straight-line vertical extension and retraction. Easy operating crank handle turns a double lead acme threaded drive screw for quick raising. rust inhibitive coating on the jack and shiny zinc-plated handle ensures long life.
  • OM-1000GS

  • FORZA

  • 8452

  • Model: OM-1000GS
  • Unit: pc
  • Min order: 300-500
Quantity:
1Ton Mechanical  Scissor jack
Capacity:1ton
Mechanism defined by a connected series of levels.
With screw bar to adjust the height.
Model Capacity(Ton) Min.H.(mm) Max.H.(mm) N.W.(KG) Qty/Ctn G.W.(KG) Package size(mm)
OM-1000GS 1 90 330 2 10pcs 22 510x370x220


Model Capacity(Ton) Min H (mm) Max H (mm) N.W (kg) G.W (kg)  Packing Qty/Carton Package Size(mm) Qty/20ft (pcs)
OM-1000A      1    100    375   2.4   2.6 Color Box   10pcs   500x430x225 5800
1Ton Mechanical Scissor Jack Features:
Heavy duty steel construction for longevity. Compact and easy to store. Precision mechanics for easy operation. Perfect for replacing flat tires on any vehicle. Tooth gear designed scissor arms engage to ensure straight-line vertical extension and retraction. Easy operating crank handle turns a double lead acme threaded drive screw for quick raising. rust inhibitive coating on the jack and shiny zinc-plated handle ensures long life.
