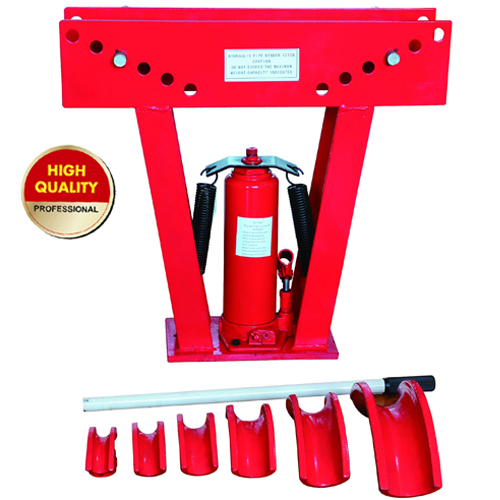

12 ton hydraulic pipe bender

Hydraulic pipe bendes includes several cast-iron shoes for different dia pipe.
It will bend all pipes with exception of conduit.
Packing: strong carton box or customized carton box.
Sales Model: Wholesale
Paint Color: Optional

Model: OM-12P
Brand: FORZA
Code: 846
Unit: pc
Min order: 30pcs

Package Size:	630mmx550mmx170mm
Quantity:


Inquire Add to Basket

Product Description

12ton hydraulic pipe bender
Includes several cast-iron shoes for different dia. pipe.
Designed for bending the pipes in the shop.

Model	Capacity (Ton)	Die Size( inch)	N.W(Kg)	G.W(Kg)	Package Size(mm)
OM-12P	12T	1/2, 3/4, 1, 1-1/4, 1-1/2, 2	34	36	630X550X170

Features:
Working in both horizontal and vertical positions, the cast iron dies allow you to easily create one of a kinds or duplicates quickly. Single piston hydraulic unit for smooth operation. Fitted with externally mounted return springs. Suitable for bending gas and air pipe, Supplied with eight steel dies to help prevent pipe distortion.
